EM H / Expansion joint profile
Laoühik: | ALB-EO-MJ-25 |
EAN: | 4752265008500 |
Bränd: | Albau |
Sobilik tootele: | Horizontal movement joints |
Profiili materjal: | PVC |
Profiili pikkus, mm: | 2500 |

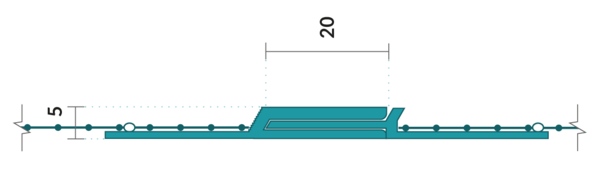

Vuugi laius, mm: | 20 |
Krohvi paksus, mm: | 5 |
Kauba kogus transpordi pakendis: | 10 (25 m) |

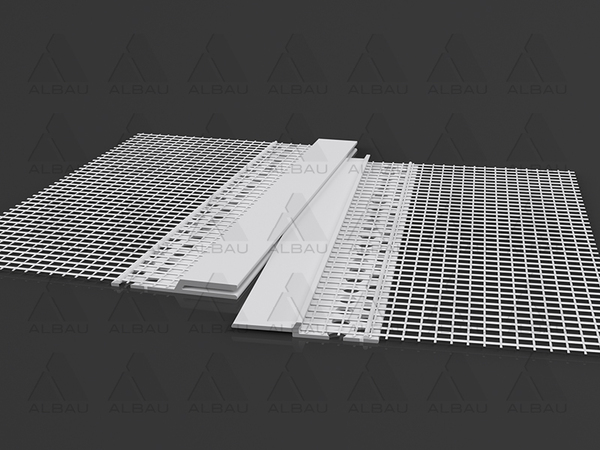

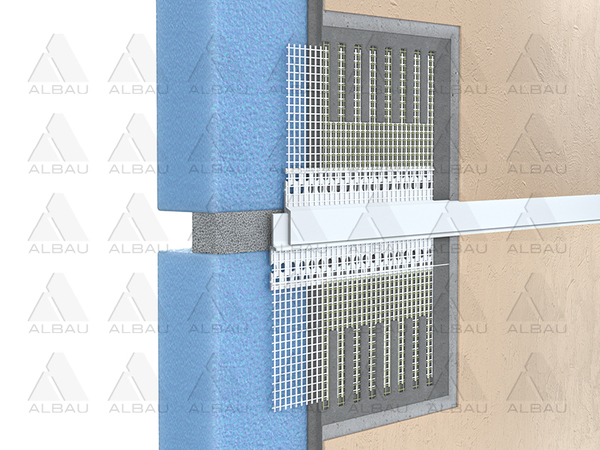

Albau EM H expansion joint profile is a horizontal movement joint profile in ETICS
- The horizontal distance between the insulation boards must be 20 mm
- A pre-compressed sealing tape must be inserted into the gap as an additional sealing level
- The movement joint profiles at the top and bottom are filled with butt joints (min. 100 mm)
