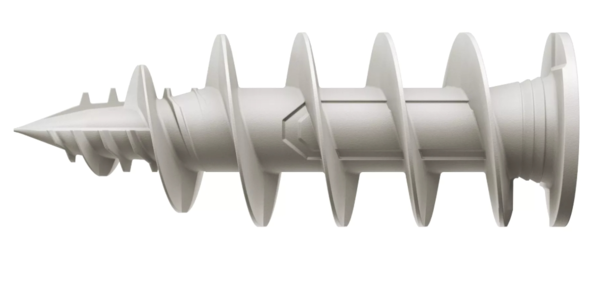

The Fischer FID II insulation plug is suitable for fixing lightweight attachments to external thermal insulation composite systems

Thanks to the combined centring, milling and cutting function of the plug tip, the FID II can be screwed in with pinpoint accuracy. The small head diameter in combination with the anchor's under head milling pockets ensure a perfectly concealed and surface-flush setting result. The FID II is particularly suitable for fixing lightweight attachments such as outdoor lamps, house numbers or doorbells to the ETICS

Top features:

• Flexible use with screws of 3,5 - 4,5 mm diameter
• Clean setting result thanks to special under head geometry
• Time-saving without pre-drilling in thin plaster layers
• Invisible fixing of smallest attachments due to minimal head diameter
• Universal use in all insulation materials

Advantages:

• The use of standard screws with a diameter of 3,5 - 4,5 mm allows flexible use
• Maximum stability due to glass fibre reinforced plastic
• Due to the minimal head diameter, the plug edge is not visible even with narrow attachments

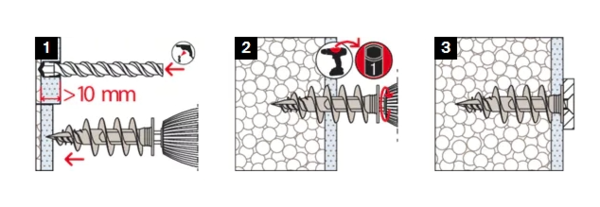

• Due to the special tip geometry, the plug screws through plaster thicknesses of up to 10 mm without pre-drilling, which enables a fast processing
• The FID II is easily set with a standard TX40 bit
• The plug enables an universal use in all common insulation materials

Applications:

• Outdoor lighting
• Motion detector

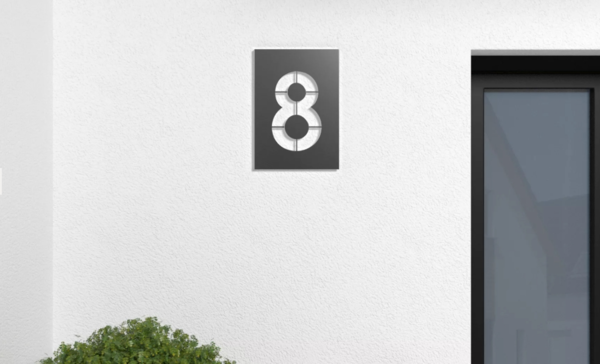

• House number

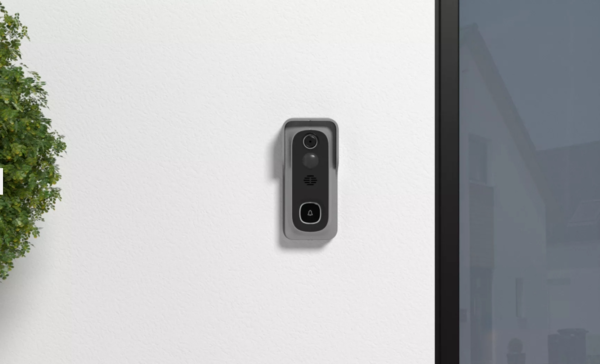

• Doorbell

Building materials:

• Mineral wool
• Expanded polystyrene (EPS)
• Extruded polystyrene (XPS)

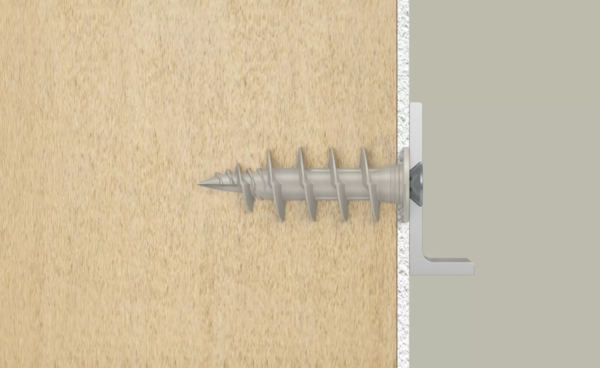

• Wood fibre
• Polyurethane rigid foam (PU)

Video:
FID II & FID II Plus - The insulation anchors for thermal bridge-free fixing on ETICS: https://youtu.be/5NSaJjdU1nk
