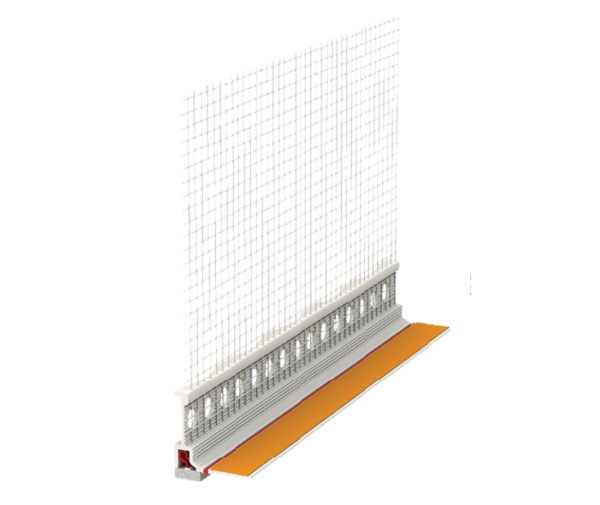

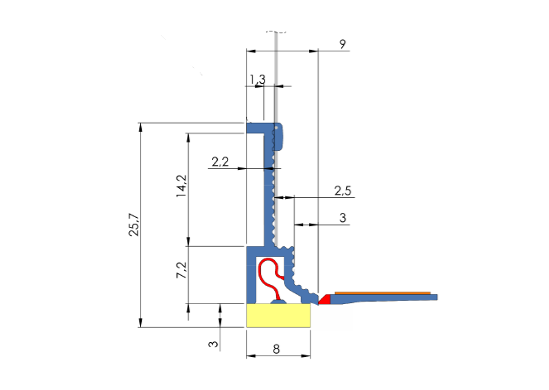

EW 3D 09 / 3D window reveal profile
| SKU: | |
| EAN: | |
| Brand: | Albau |
| Suitable for: | Creation of elastic connection of the window or door frame to plaster |
| Movement ability: | 3D |
| Plaster system thickness, mm: | 9 |
| Profile material: | PVC |
| Mesh material: | Glass fibre |
| Foam tape material: | PE |
| Cord material: | Thermoplastic elastomers |
| Profile length, mm: | 2400 |
| Mesh width, mm: | 100 |
| PE foam tape dimensions, mm: | 8 x 3 |
| Anthracite color: | RAL7016 |
| Amount of products in transport packaging: | 25 (60 m) |
Albau self-adhesive 3D window reveal profile combined with a TPE cord, in order to be able to absorb three dimensional movements. The profile is equipped with welded VWS fabric, a PE sealing tape proof against driving rain as well as a flexible transition to the protective flap with self-adhesive tape for attaching protective films for windows (doors) and frames
- Three-dimensional movement absorption
- Clean finish
- Rain-tight joint
- Reduced sound transmission
- With TPE cord
- No additional adhesive tape needed
- No subsequent cleaning required
- Maintenance-free joint
- Ö-Norm B6400 Class 3
