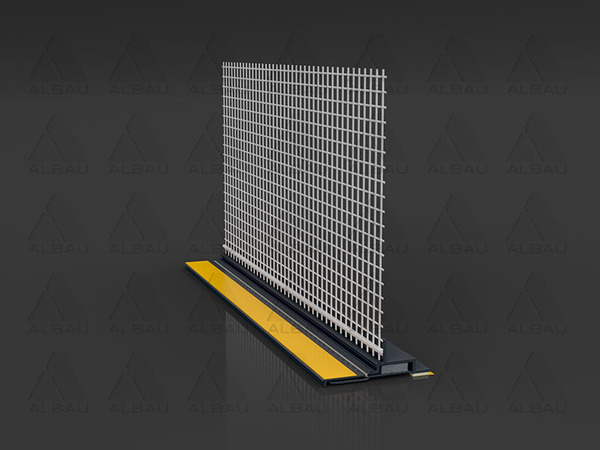

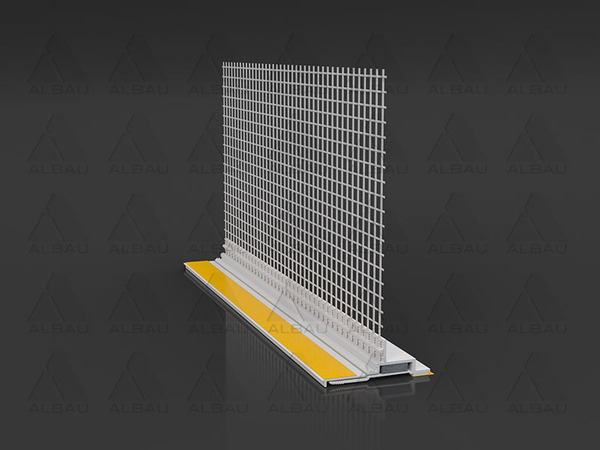

EW-3D PUR W38 / 3D Window reveal profile

SKU:
EAN: 7640301852248
Brand: APU
Suitable for: Creation of elastic connection of the window or door frame to plaster
Movement ability: 3D
Profile material: PVC – alkali and UV resistant
Mesh material: Glass fibre
Foam tape material: Elastic PE tape with closed cells, two-side adhesive
Profile length, mm: 1400 & 2400
Mesh width, mm: 125
Mesh weight, g/m²: 160
Size of mesh openings, mm: 6 x 6
PE foam tape dimensions, mm: 6 x 1
PUR sealing tape, mm: 10 (watertight for 3–9 mm joint)
Anthracite color: RAL 7016
Amount of products in transport packaging (APU-W38-pro-S-W-1.4): 25 (35 m)
Amount of products in transport packaging (APU-W38-pro-S-W-2.4; APU-W38-pro-S-AG-2.4): 25 (60 m)

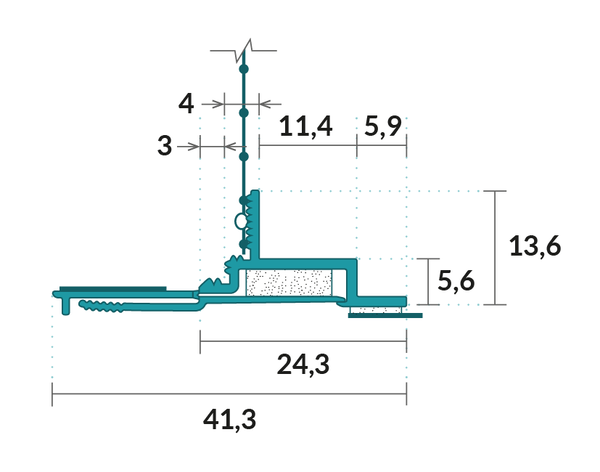

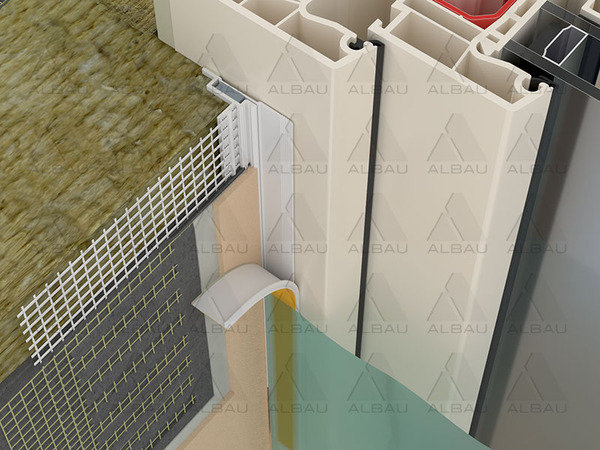

APU 3D window reveal profile PUR-FIX-pro with expanding PUR sealing strip and glass fibre mesh. The profile provides connection elastic in 3 directions between the window or door frame to plaster in the thermal insulation system – ETICS. It provides a quality connection even in cases of significant movement of the building construction. The PUR sealing tape ensures a tight connection between the thermal insulation system and the frame, even with increased and constant structural movements

  • The profile is used in ETIC systems and window and door systems where bigger equalization movements are expected
  • The profile can be aligned and set before the insulation is applied

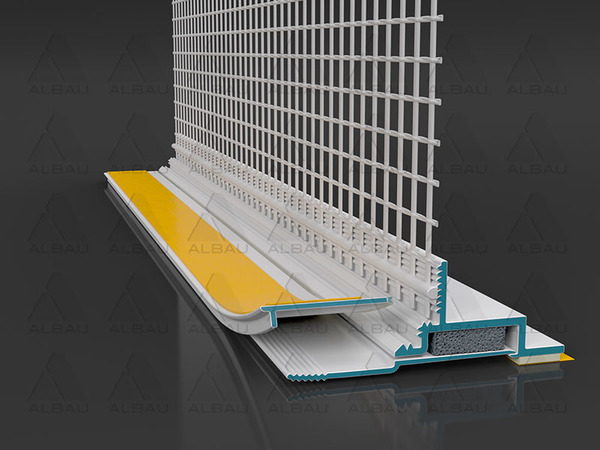

  • The profile is equipped with a compressed PUR sealing tape, which is released when the protective mechanism is removed and expands directly to the frame component, sealing tight against driving rain. The PUR sealing tape is stuck into the profile and has a projection on both ends to seal the contact area between two profiles
  • For temporary fixation the profile is additionally equipped with a self-adhesive PE tape
  • A fabric part of 12,5 cm wide is welded onto the profile bar with one-sided overhang lengthways

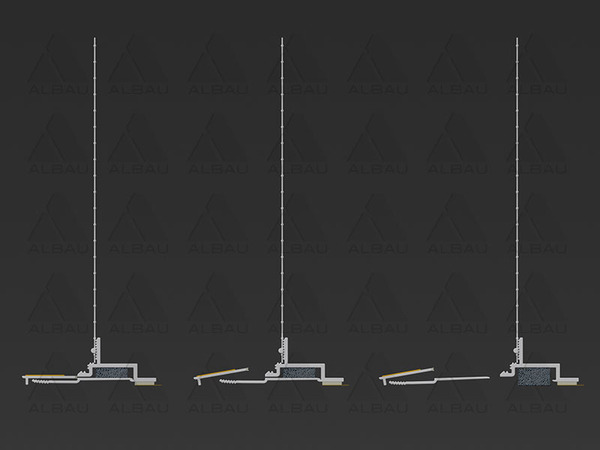

  • The protective tab with a self-adhesive tape takes up the on-site protective foil to protect the window during plastering. The protective tab can then be pulled off, resulting in a neat plaster edge

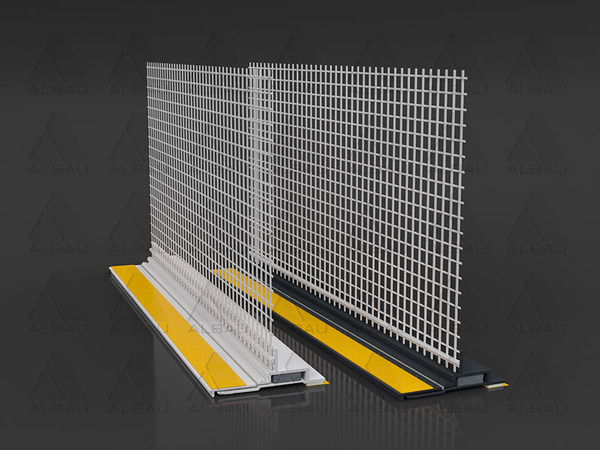

Color, Length
Delivery Time
14 - 28 days
Price
€13.20
